Hole processing is a fundamental and critical technology in mechanical manufacturing, widely applied in aerospace, automobile production, mold making, 3C electronics and other industries. Unlike external cylindrical surface processing, hole processing faces more severe constraints—such as limited tool rigidity, poor chip removal and heat dissipation conditions, and high requirements for dimensional accuracy—making it technically more challenging. This article systematically explains the core concepts, characteristics, and application scenarios of common hole processing methods including drilling, reaming, boring, honing, and broaching, helping to clarify their differences and practical application scope.

Drilling is the initial process for creating holes in solid materials, typically used for holes with diameters less than 80mm. It has two main operation modes: drill rotation or workpiece rotation. The two modes result in different errors: drill rotation may cause hole axis deviation due to asymmetric cutting edges or insufficient drill rigidity, but the hole diameter remains relatively stable; workpiece rotation leads to diameter variations if the drill deflects, while the axis stays straight.

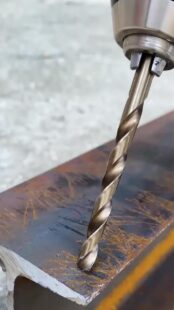

The most commonly used drilling tool is the twist drill (Φ0.1-80mm), supplemented by center drills and deep hole drills. Due to structural limitations, drilling has low precision (IT13～IT11) and rough surface finish (Ra 50~12.5μm), but it boasts high metal removal rate and efficiency. It is mainly used for low-precision holes like bolt holes, thread pilot holes, and oil holes, which require subsequent processing for higher quality.

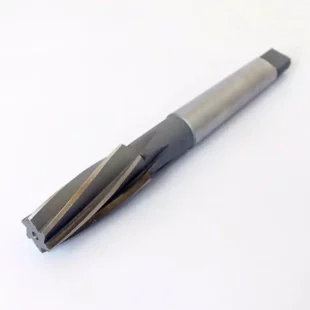

Reamers are classified into hand reamers (straight shank, long working part for better guidance) and machine reamers (shanked or shell-type). They can process both cylindrical holes and tapered holes with taper reamers, with integral and adjustable outer diameter structures available for hand reamers.

Reaming allowance significantly impacts quality: excessive allowance overloads the reamer and blunts cutting edges, while insufficient allowance fails to remove previous tool marks. Generally, rough reaming allowance is 0.15~0.35mm and finish reaming is 0.05~0.15mm. Low cutting speeds (v＜8m/min for HSS reamers on steel and cast iron) and appropriate feed rates (0.3~1mm/r, increasing with hole diameter) are adopted to avoid built-up edge.

Adequate cutting fluid is essential for cooling, lubrication, and chip removal. Reaming offers high productivity and ensures precision (IT9～IT7, Ra 0.8~3.2μm) but cannot correct axis position errors, which must be guaranteed by prior processes. It is unsuitable for stepped holes or blind holes. The drill-ream-ream process is a typical scheme for medium-sized, high-precision holes (e.g., IT7 grade).

Boring is a method to enlarge prefabricated holes, applicable on lathes or boring machines, with three main modes:

Fine boring features small depth of cut, low feed rate, and high cutting speed, achieving high precision (IT7～IT6) and smooth surface (Ra 0.05~0.4μm). Initially using diamond tools, it now employs cemented carbide, CBN, and synthetic diamond. It is widely used for precision holes in mass production, such as engine cylinder bores and spindle holes.

Cutting parameters for fine boring: pre-boring depth 0.2~0.6mm, finish boring 0.1mm; feed rate 0.01~0.14mm/r; cutting speed 100~250m/min for cast iron, 150~300m/min for steel, and 300~2000m/min for non-ferrous metals. Fine boring machines require high geometric precision and rigidity, with precision angular contact ball bearings or hydrostatic bearings for spindles. Note that diamond tools are unsuitable for ferrous metals due to carbon-iron affinity.

Boring tools are divided into single-edged and double-edged types. Compared with the drill-ream-ream process, boring is not limited by tool size and can correct axis deviations through multiple passes, ensuring high positional accuracy. However, its quality and efficiency are lower than external turning due to poor tool rigidity and heat dissipation.

Boring is versatile for various sizes and precision grades (IT9～IT7), being almost the only method for large, high-precision holes and hole systems. It can be performed on boring machines, lathes, and milling machines, with jigs used to improve efficiency in mass production.

Honing is a finishing process using a honing head with abrasive sticks. The workpiece is fixed, while the honing head rotates and reciprocates linearly, removing a thin material layer with a crosshatched cutting path. To avoid repeated trajectories, the number of rotations and reciprocations per minute should be coprime.

The cross angle depends on reciprocating and circumferential speeds, affecting quality and efficiency (larger for rough honing, smaller for finish honing). Sufficient cutting fluid is required for chip removal and cooling. The honing head exceeds the hole ends by an overtravel to ensure uniform processing, and it is floatingly connected to the spindle to reduce rotation errors. Abrasive stick radial adjustment can be manual, pneumatic, or hydraulic.

Honing achieves high dimensional and shape accuracy (IT7~IT6, roundness and cylindricity errors within tight limits) but cannot improve positional accuracy. It delivers excellent surface quality (Ra 0.025~0.2μm) with minimal surface damage (2.5~25μm). Despite moderate circumferential speed (16~60m/min), high productivity is achieved through large contact area and reciprocating speed (8~20m/min).

Widely used in mass production for precision holes in engine cylinders and hydraulic components, honing suits diameters from small to large and deep holes with length-diameter ratio >10. It is unsuitable for non-ferrous metals with high plasticity or holes with keyways/splines.

Broaching is a high-productivity finishing process using special broaches on horizontal or vertical broaching machines (horizontal being common). The broach performs low-speed linear motion as the main feed, with 3~8 simultaneous working teeth to ensure stability and avoid excessive force-induced fracture.

There are three broaching modes: layered broaching (removing material layer by layer with staggered chip grooves), block broaching (each layer removed by a group of staggered teeth), and combined broaching (block roughing + layered finishing, balancing efficiency and surface quality).

Broaching completes roughing, finishing, and superfinishing in one pass with multi-tooth tools, offering high productivity. Precision (IT9~IT7) and surface finish (Ra 1.6~6.3μm) depend on broach accuracy. The workpiece is positioned by the pre-processed hole, making it difficult to guarantee positional accuracy with other surfaces—thus, holes are often broached first as a reference.

Broaches can process cylindrical and shaped holes (e.g., spline holes) but are expensive and unsuitable for large holes. It is widely used in mass production for through holes (Φ10~80mm) with depth ≤5 times the diameter.

Hole processing technologies مثل drilling, reaming, boring, honing, and broaching each have unique characteristics and application scenarios, tailored to different precision, efficiency, and workpiece requirements. Drilling and reaming are essential for preliminary processing, while reaming, boring, honing, and broaching meet high-precision demands. In practical production, the selection of hole processing methods must consider factors like material, hole size, precision grade, and production volume. With the development of advanced manufacturing, hole processing technologies continue to evolve toward higher efficiency, precision, and intelligence, playing a pivotal role in optimizing product performance and manufacturing processes across industries. Mastering the principles and applications of these hole processing methods is crucial for improving production efficiency and product quality in mechanical manufacturing.
