简体中文 LaIn the world of CNC machining, end mills are true “all-rounders” — they’re indispensable in nearly every metalworking scenario. Many people mix them up with drill bits, but there’s a fundamental difference: drill bits only drill holes axially, while end mills can cut horizontally into materials. They’re capable of both grooving and contouring, and some center-cutting models can even double as drill bits. Their versatility far outshines that of drill bits. To make the most of this “go-to tool,” start with the basics: its core parameters.
La
Understanding End Mills: Definition and Core ParametersLa
What is an End Mill?La
An end mill is the backbone of milling operations. It features cutting edges on both its circumference and end face, achieving cuts through high-speed rotation and relative movement with the workpiece. Think of it as a “sculptor’s tool” — it shapes workpieces into various forms as needed. It’s a must-have for CNC milling machines and machining centers, and one of the most widely used tools in mechanical manufacturing.
La
Core Basic ParametersLa

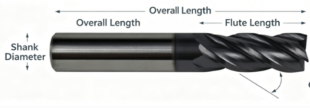

An end mill’s performance hinges on several key parameters, which are also the primary factors to consider when choosing a tool:La
La- Shank Diameter: The diameter of the tool’s clamping section. Common types include straight shanks (under Φ20mm), Morse taper shanks, and high-holding-power shanks. It directly impacts clamping stability and vibration resistance.La
- Cutting Diameter: The width of the tool’s cutting portion, which dictates the size of the features it can machine (detailed later).La
- Total Length / Flute Length: Total length refers to the tool’s overall size, while flute length is the effective cutting section. Both influence machining depth and tool rigidity — the shorter the flute length, the stiffer the tool. If the flute length doubles, the tool’s rigidity drops to just 1/8 of its original strength.La
- Helix Angle: Most general-purpose end mills have a helix angle of around 30°. A higher helix angle (e.g., 45°) reduces cutting force, heat, and vibration, resulting in better surface finish, but compromises tool strength. Lower helix angle tools are more robust but deliver slightly inferior surface quality.La
- Material and Coating: Common materials include high-speed steel and solid carbide. Carbide tools with nano-coatings offer enhanced hardness and wear resistance, extending service life — ideal for machining high-hardness materials.La
- Specifications Labeling: Classic tool catalogs clearly list key details, such as “flat end, 4-flute, solid carbide, shank diameter 6mm, cutting diameter 6mm, total length 50mm, flute length 22mm, helix angle 45°,” providing a clear snapshot of the tool’s capabilities.
- La
The “Head Shape” of End MillsLa
An end mill’s bottom edge (or head shape) directly determines its best uses. There are three main types, plus specialized designs for niche applications:La
LaSquare-End Mill (Flat-End Mill) 3La
This is the most common, basic type, with a flat bottom edge — similar to a “flat chisel.” It offers excellent value and consistent performance, suitable for machining a wide range of materials. It can handle finish milling, rough milling, grooving, heavy stock removal, and finishing small horizontal surfaces or contours, making it the “workhorse” of general machining.
La
Ball-End Mill La
With a hemispherical head and chip flutes shaped to match the curve, it acts like a “round-nosed carving tool.” It excels at milling curved surfaces, arc grooves, and 3D contours, easily tackling mold cavities and complex curved parts. It performs reliably at high temperatures and works with materials like mold steel, cast iron, carbon steel, and alloy steel — the top choice for mold making and 3D machining.
La
Corner Radius End Mill (Bull Nose Mill)La
Featuring a small fillet (typically R0.5 or R1), it sits between square-end and ball-end mills. The fillet design distributes cutting force evenly, preventing edge chipping and prolonging tool life. It creates flat-bottomed grooves with slightly rounded inner corners, balancing face milling and contouring. It’s more wear-resistant than square-end mills, striking a perfect balance between efficiency and durability.
La
Special-Shaped End MillsLa
Beyond the three main types, there are tools tailored to specific tasks:La
- Roughing End Mill: Wavy cutting edges enable fast chip removal and heavy stock removal, though surface finish is rough.La
- Tapered End Mill: Designed for machining angled grooves, ideal for die castings and molds.La
- T-Slot End Mill: Cuts precise keyways and T-slots with ease.La
- Straight Flute End Mill: Zero helix angle, perfect for materials like wood and plastic, minimizing edge wear.
- La
Number of Flutes and Chip FlutesLa

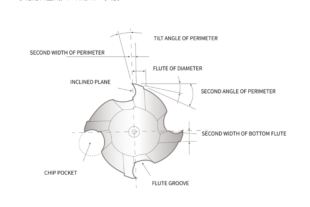

LaThe number of flutes and chip flute design are an end mill’s “core features.” They’re closely linked and directly affect chip evacuation, cutting efficiency, and machining quality:La
Common Flute Counts and Their TraitsLa
End mills typically have 2, 3, 4, 5, 6, or 7 flutes — each count serves a distinct purpose:La
- Fewer flutes mean wider chip flutes and larger chip capacity, ensuring smooth chip flow. However, the tool has a smaller cross-section, lower rigidity, and is prone to vibration.La
- More flutes increase the cutting area, allowing higher feed rates and efficiency. They reduce vibration and cutting force, improve surface finish, and lower cutting temperatures — but narrower chip flutes reduce chip capacity, leading to potential clogging.La
- Too many flutes can reduce the material removed per flute, decreasing individual flute efficiency. Choose based on your specific machining needs.La
Classic Showdown: 2-Flute vs. 4-Flute End MillsLa
2-flute and 4-flute end mills are the most widely used, with clear roles — they’re the “dynamic duo” of roughing and finishing:La
2-Flute End Mill: Chip Evacuation Champion
LaIdeal for:La
- Grooving and cavity roughing (handles large chip volumes, requiring fast evacuation)La
- Machining soft materials like aluminum alloy, copper, and plastic (prevents tool sticking with wide flutes)La
- Plunge milling and side milling with heavy stock removalLa
Pro Tips:La
- Crank up the feed rate for roughing — it’s fast and efficient.La
- Avoid using it for finishing: poor rigidity leads to visible tool marks.La
Word of Caution:La
- Not recommended for steel or stainless steel — low rigidity causes excessive vibration.La
4-Flute End Mill: Finishing Expert
LaIdeal for:La
- Sidewall finishing and contour milling (multi-flute cutting delivers smooth surfaces)La
- Machining hard materials like carbon steel, alloy steel, and stainless steel (high rigidity minimizes vibration)La
- Workpieces requiring tight dimensional accuracyLa
Pro Tips:La
- Achieves surface roughness (Ra) below 0.8 during finishing — exceptional precision.La
Word of Caution:La
- Avoid roughing with it: narrow flutes cause chip clogging and tool overheating. Not suitable for large-area grooving or heavy stock removal on aluminum.La
How to Choose Between 2-Flute and 4-Flute End MillsLa
Rudesse: Prioritize chip evacuation — go with 2-flute.La
Finition: Prioritize rigidity — opt for 4-flute.La
Don’t use one tool for everything: Rough with a 2-flute, then switch to a 4-flute for finishing. Specialization boosts efficiency.La
Extra Notes:La
Use 4-flute tools cautiously on aluminum — risk of chip buildup and surface marring.La
Avoid 2-flute tools on stainless steel — low rigidity and high vibration. Choose coated 4-flute tools instead.
End Mill Diameter: Key to Machining CapabilityLa
An end mill’s head (cutting) diameter is critical for determining machining scale and precision. Different diameters suit different tasks:La
1. Large-Diameter End Mills (6, 7, 10, 12mm, etc.)La
Like a “heavy-duty excavator,” they’re built for tough jobs: roughing or heavy stock removal at high feed rates, handling deep cuts with stability thanks to their large cross-section. Perfect for machining large components and achieving fast material removal — a productivity booster.La
2. Small-Diameter End Mills (0.5, 1, 1.5mm, etc.)La
Think of them as “precision scalpels,” excelling at complex, detailed work. They handle fine features, tight tolerances, and smooth surface finishes, navigating narrow spaces for intricate contouring, cavity machining, and delicate profiling. Essential for precision part manufacturing.La
In real-world production, a range of diameters is often needed to cover everything from roughing to finishing, and large-surface to detailed work.
La
End Mill ApplicationsLa
End mills’ versatility and precision make them the backbone of numerous industries, spanning general machinery to high-end manufacturing:La
1. Metal ProcessingLa
The foundational use for end mills — they cut, groove, bore, and drill, producing metal parts like gears, bearing housings, and connectors. Adjust milling angles and depths to achieve the desired shape and size.La
2. Mold ManufacturingLa
Used to make injection molds, die-casting molds, and stamping molds, they accurately cut mold contours and details, ensuring final product precision and consistency. Ball-end and corner radius end mills are particularly popular here.La
3. Aerospace IndustryLa
Critical for machining complex surfaces, holes, and precision structures in aircraft parts and aerospace equipment. They balance part precision, quality, and lightweight design, driving equipment performance — high-hardness, high-precision end mills are in high demand.La
4. Automotive ManufacturingLa
Used to machine key components like engine blocks, crankshafts, brakes, and suspension parts, as well as body structures and chassis components. They directly impact vehicle reliability and performance. For example, the UP300 series end mills offer 30% longer service life than competitors for automotive interior mold and motor shaft keyway machining.La
5. Other FieldsLa
End mills also play vital roles in general machinery, 3C electronics, energy heavy industry, and medical equipment. Examples include machining turbine components for power plants and nuclear equipment, and manufacturing precision medical parts.
La
Choose the Right End Mill for Maximum EfficiencyLa
Every aspect of an end mill’s design — from basic parameters to specialized features — is engineered with “machining wisdom.” Choosing the right end mill doesn’t just boost efficiency and product quality; it also extends tool life and reduces production costs. Whether you’re a machining professional or a CNC enthusiast, mastering this Fraise en bout knowledge will deepen your appreciation for the art and science of mechanical manufacturing.
