In drilling engineering, the drill bit is a core piece of equipment that dictates drilling efficiency, costs, and downhole safety. Choosing the right drill bit can double drilling productivity with half the effort, while a poor selection may result in premature drill bit wear, sticking, or other incidents that severely hinder construction progress. The core logic of drill bit selection can be summarized as “formation adaptation first, drilling requirements second, and parameter synergy matching” — the most advanced drill bit is not necessarily the best; instead, “the right fit is optimal.”
This article breaks down practical drill bit selection methods from three dimensions: selection prerequisites, core parameters, and auxiliary parameters, combined with on-site cases, to make complex selection logic clear and actionable.
Selection Basics
All drill bit parameter selections must be based on clear core prerequisites, which is the key to avoiding selection mistakes:
Grasp Formation Characteristics (Most Critical)
The formation is the drill bit’s “working environment,” and its properties must be thoroughly understood: clarify the rock mechanical properties (uniaxial compressive strength, UCS), lithology (soft/medium-hard/hard, homogeneous/heterogeneous), and abrasiveness of the target interval. Additionally, identify characteristics such as proneness to collapse or bit balling, and the presence of interbeds (e.g., sand-shale interbeds, igneous rock intrusions). For example, soft mudstone is highly susceptible to bit balling, while quartz sandstone exhibits high abrasiveness — different formations impose distinctly different demands on the drill bit’s rock-breaking capabilities.
Clarify Drilling Requirements
Determine the well type (vertical well/directional well/horizontal well), drilling speed requirements, borehole size, and special needs such as anti-well deviation or anti-bit ballooning according to the engineering design. For instance, the horizontal section of a horizontal well needs to focus on solving cuttings carrying problems, and the build-up section of a directional well has higher requirements for drill bit stability.
Refer to Offset Well Experience
Data from offset wells in the same block and formation is a “practical reference”: prioritize drill bit models that have been verified to improve drilling speed and extend service life, avoid parameter combinations with poor adaptability, and reduce trial-and-error costs.
Selection of Four Main Types of Drill Bits
Currently, mainstream drill bits are divided into PDC bits, roller cone bits, diamond bits, and drag bits. They have different rock-breaking mechanisms and focus on different adapted formations. The core of selection is “matching lithology with rock-breaking mechanism”:

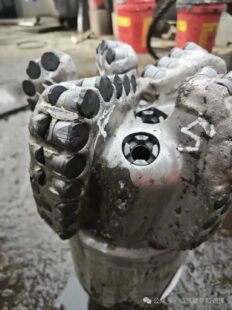

PDC Bits for Soft to Medium-Hard Formations
PDC bits (Polycrystalline Diamond Compact bits) are the most widely used cutting-type drill bits. They break rock through scraping, shearing of polycrystalline diamond compact cutters, requiring low weight on bit and achieving high rate of penetration (ROP), which is suitable for soft to medium-hard, non-abrasive or low-abrasive formations with UCS , such as mudstone, shale, and limestone, especially for shale gas horizontal wells.
On-site Case: For deep shale gas horizontal wells in the Barnett Shale Gas Field, USA, targeting the Barnett Shale (UCS 150-200MPa) prone to bit ballooning, PDC bits with large rake angles (20°-25°) and deepened flow channels were selected, increasing the ROP by more than twice compared with traditional drill bits; while for the limestone formation in Oman, the Middle East (UCS 120MPa), PDC bits with small rake angles (12°) were adopted to enhance cutting ability, improving the ROP by 28%.
Taboo: High-abrasive formations (UCS > 250MPa) and highly plastic formations (such as salt-gypsum layers) are likely to cause rapid wear of cutting teeth.

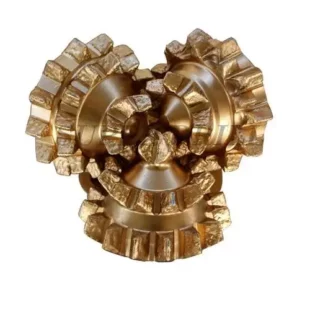

Roller Cone Bits for All Formations
Roller cone bits break rock through rolling and impact of their cones. With small contact areas between cutting edges and rock, they penetrate formations easily and offer exceptional versatility. They excel in high-abrasive, heterogeneous formations (e.g., quartz sandstone, conglomerate) and high-abrasive hard formations (UCS > 250MPa) that PDC bits cannot effectively handle.
On-site Case: For the underlying quartz sandstone formation (UCS > 250MPa) in the Barnett Shale Area, Texas, USA, PDC bit cutters are prone to wear. After replacing with roller cone bits, the average footage per drill bit increased by 30%; a well in the Siberian Basin, Russia, encountered conglomerate interbeds with gravel particle sizes of 5-10mm, and the roller cone bit successfully penetrated without sticking or excessive wear.
Taboo: Easy-bit-ballooning formations (such as soft mudstone) can cause mud to block the gaps between roller cones, leading to drill bit jamming.

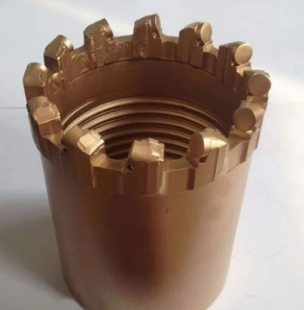

Diamond Bits for Hard Formations
With natural or synthetic diamonds as cutting edges, diamond bits break rock through grinding. They have extremely high hardness and wear resistance, mainly suitable for hard and dense formations with UCS > 300MPa, such as basalt and granite, and also for scenarios requiring high-precision boreholes such as coring drilling.
On-site Case:For deepwater pre-salt reservoir drilling in Brazil (well depth > 4000m) encountering basalt formations (UCS = 350MPa), roller cone bits achieved less than 50m of single-bit footage. Replacing them with diamond bits increased footage to over 200m while maintaining a more regular borehole trajectory.
Taboo: Soft formations and easy-bit-ballooning formations result in low grinding efficiency and are prone to drill bit sticking.

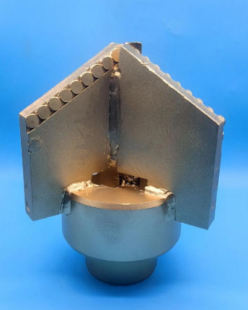

Drag Bits for Soft Formations
Characterized by a simple structure and low cost, drag bits break rock through scraping via fixed cutting edges on the bit body. They are designed for unconsolidated, extremely soft formations with UCS < 50MPa (e.g., loose sandstone, soft mudstone, coal seams) and are optimal for shallow drilling operations.
On-site Case: For shallow drilling in the Queensland Coalbed Methane Field, Australia (well depth 000m, UCS = 30MPa), drag bits were selected, achieving an ROP of over 15m/h, with a cost only 1/3 of that of PDC bits.
Taboo: Hard formations, abrasive formations, and gravel-containing formations can cause rapid wear and fracture of cutting edges.
Key Parameters: Number of Blades and Number of Cutter Rows
After determining the drill bit type, it is necessary to further optimize the number of blades (only for PDC bits) and the number of cutter rows (both PDC and roller cone bits need attention). Both directly affect the aggressiveness, stability, and service life of the drill bit:
Selection of Number of Blades
The core logic for selecting the number of blades is “the harder and more abrasive the formation, the more blades; the more prone to bit ballooning or collapse, the fewer blades”. Common numbers of blades range from 4 to 7:
4-5 blades: High aggressiveness with large blade spacing and open hydraulic channels, suitable for easy-bit-ballooning, easy-collapse formations, and horizontal sections of horizontal wells, enabling rapid cuttings carrying and anti-bit ballooning. A 5-blade PDC bit was selected for horizontal wells in the Marcellus Shale Gas Field, USA, with no bit ballooning accidents and an ROP of 8.2m/h.
6-7 blades: High stability with high cutter density and distributed cutting force on cutters, suitable for medium-hard to hard formations, abrasive formations, and build-up sections of directional wells. 6-7 blade PDC bits were adopted in the Eagle Ford Shale Area, USA, reducing wear rate by 40% and significantly increasing footage.
Selection of Number of Cutter Rows
The core logic for selecting the number of cutter rows is “the softer the formation and the higher the ROP requirement, the fewer cutter rows; the harder and more abrasive the formation, the more cutter rows”:
Few cutter rows (PDC: 3-4 cutters per blade; roller cone: 3-5 cutters per row): High aggressiveness and smooth cuttings discharge, suitable for soft formations, easy-bit-ballooning formations, and shallow drilling requiring high ROP. A PDC bit with 3 cutters per blade (15 total cutter rows) was used for soft mudstone drilling in the Haynesville Shale Gas Field, USA, achieving an ROP of 18m/h with smooth cuttings discharge and no bit ballooning.
Medium cutter rows (PDC: 4-5 cutters per blade; roller cone: 5-7 cutters per row): Balancing aggressiveness and stability with moderate cutting force on cutters and good wear resistance, they have the widest adaptability and are the first choice for most medium-soft to medium-hard homogeneous formations. A PDC bit with 4 cutters per blade (20 total cutter rows) was selected for a conventional vertical well (well depth 2000-3000m) drilling homogeneous sandstone formations (UCS 150MPa), balancing ROP and service life with an average footage of 400m per drill bit and a stable ROP of around 10m/h.
Many cutter rows (PDC: 5-6 cutters per blade; roller cone: 7-9 cutters per row): Strong wear resistance and long service life due to more cutters and distributed cutting force, but relatively low aggressiveness and ROP, suitable for hard formations, high-abrasive formations, and deep/ultra-deep wells (needing to extend drill bit life and reduce tripping times). A PDC bit with 6 cutters per blade (36 total cutter rows) was used for ultra-deep well drilling (well depth > 4000m) in the North Sea, Norway, encountering basalt formations (UCS 320MPa), significantly improving wear resistance with a single-bit footage of 250m and avoiding frequent tripping.
Synergistic Matching Principle
Blade count and cutter row count should be positively correlated: 4-5 blades paired with few cutter rows for soft or bit balling-prone formations; 6-7 blades paired with medium or many cutter rows for hard or abrasive formations. Avoid “many blades with few cutter rows” (insufficient stability) or “few blades with many cutter rows” (flow channel blockage and bit balling risks). A notable negative example is a severe bit balling incident in a US Fayetteville Shale gas well caused by a 7-blade dense-cutter PDC bit.
Other Unignorable Detailed Parameters
In addition to core parameters, auxiliary parameters such as cutter rake angle, crown profile, and gauge design can further improve drill bit adaptability:
Cutter rake angle: Small rake angles (10°-15°) are used for brittle rock formations (UCS MPa) to enhance cutting ability and form large cuttings; large rake angles (20°-25°) are adopted for plastic/high-abrasive rock formations (UCS > 200MPa) to reduce cutting force and avoid thermal damage.
Crown profile: Double-cone shape is suitable for build-up sections of directional wells; parabolic shape is adapted to vertical wells and homogeneous formations; shallow cone shape offers high ROP and low lateral force, suitable for soft to medium-hard formations. A double-cone drill bit was used for extended-reach wells in the Gulf of Mexico, increasing ROP by 19% with a smoother borehole trajectory.
Gauge design: Long gauge with cemented carbide strips is suitable for easy-shrinking formations (salt-gypsum layers, shale) to prevent irregular boreholes; short gauge with PDC gauge cutters is adapted to stable sandstone to reduce torque fluctuations. A well in the Rub’ al-Khali Basin, the Middle East, encountered tripping resistance 3 times when using a short-gauge drill bit in salt-gypsum layers; after replacing with a long-gauge drill bit with tungsten carbide inserts, the entire process was free of sticking.
Selection Summary and On-Site Practical Suggestions
In summary, drill bit selection is not a simple “parameter stacking” but a systematic matching based on formation and engineering requirements. Only by accurately grasping the core of “formation adaptation” and synergistically optimizing various parameters can we improve drilling efficiency, reduce costs and downhole risks, and maximize the value of each drill bit.
