Black marks refer to dark spots or streaks that usually appear on aluminum alloy parts after CNC machining. They may result from oxidation, material transfer, or residues of coolants and tools. These marks can be tiny spots or larger stains, and most of them are smaller than 2 millimeters in size.



Main Causes of Black Spots

During and after the CNC machining process, various factors can lead to the formation of black spots on aluminum parts. Understanding these causes helps you identify the root of the problem and how it affects the final surface quality.



Tool and Coating

Wear of cutting tools generates frictional heat during machining. When the temperature in the cutting area exceeds 200°C, it causes aluminum oxidation and material adhesion to the tool, leaving black marks or streaks on the part surface.

Machining strategies such as high-speed machining with carbide tools can also limit heat generation in the working area. Increased metal removal rate reduces the chance of heat transfer to the aluminum, enabling faster part machining. Compared with slotting, trochoidal tool paths distribute the load evenly and prevent heat concentration.

If the tool coating is not suitable for aluminum alloys—for example, basic high-speed steel wears quickly and causes material transfer; high-temperature-resistant coatings like titanium nitride can also lead to aluminum accumulation—black marks will form.

Using incorrect tool materials or shapes can intensify the deformation force on aluminum alloy parts. Carbide, diamond-coated, or PCD (Polycrystalline Diamond) inserts are ideal for maintaining part tolerances due to their wear resistance and sharp cutting edges. Multi-layer coatings deposited via PVD (Physical Vapor Deposition), such as TiAlN (Titanium Aluminum Nitride) and AlTiN (Aluminum Titanium Nitride), can also improve aluminum adhesion resistance and minimize heat buildup.

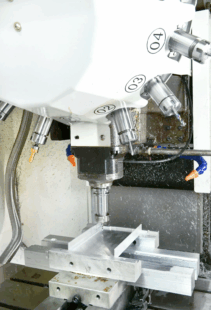

Clamping

Proper clamping is necessary to secure parts firmly, but excessive clamping force can cause deformation of aluminum workpieces. Aluminum is a very soft material, so if the vise is tightened too much, thin sections may bend or deform. Additionally, thermal expansion during machining increases internal stress.

Avoid over-clamping aluminum parts to maintain fixture stability. Moreover, softer clamping materials like aluminum or copper jaws distribute clamping force more evenly than steel jaws. Using load-indicating sensors to monitor pressure also helps prevent over-clamping.



Workpiece Preheating and Post-Machining Cooling

Heat generated during aluminum machining can cause significant thermal expansion and deformation. During cutting, frictional heat is produced at the tool-workpiece interface, and inappropriate feed rate/speed can further exacerbate this phenomenon. One way to control heat is to avoid overly aggressive machining parameters: reduce cutting force by lowering the feed rate and decreasing the depth of cut. High-pressure coolant sprayed onto the tool tip can also dissipate accumulated heat.

Proper heating or cooling of parts before machining helps prevent thermal deformation of aluminum. Preheating to approximately 250°F (about 121°C) before cutting reduces residual stress and stabilizes the material temperature, minimizing deformation caused by intermittent heating.

Cooling parts to ambient temperature after machining also prevents uneven cooling and associated warping. Methods may include workbench cooling, wax/oil cooling, or low-temperature systems. The goal is to bring the component to a uniform temperature before insufficient cooling leads to dimensional errors.

शीतलक

Aging and contaminated coolants lose their lubricating properties, increasing friction and raising the temperature. When the temperature exceeds 150°C, aluminum oxidation occurs, resulting in dark streaks on parts. Coolants containing bacteria and metal particles leave residues, reducing surface quality.

Coolants lacking corrosion inhibitors fail to protect aluminum during machining, leading to black spots on finished products. A pH value below 7 accelerates corrosion and increases the risk of dark discoloration.



Aluminum Workpiece Storage Environment and Handling Factors

Storing aluminum parts in harsh environments causes them to absorb moisture and contaminants, leading to oxidation and stain formation. When humidity exceeds 60%, black spots form more quickly; dust and dirt result in uneven discoloration.

Improper post-machining operations—such as using dirty tools—transfer dirt and oil, which react with aluminum to form marks. Delaying subsequent cleaning processes increases the risk of black spot formation.



Machining Parameters

Increasing the feed rate and cutting speed raises the temperature in the cutting area. When the temperature exceeds 200°C, aluminum oxidation occurs, leaving black marks. High-speed cutting also accelerates tool wear, causing surface discoloration and reduced finish quality.

Residual chips from machining rub against the aluminum surface repeatedly, creating black streaks and scratches. Accumulated chips absorb heat, making oxidation and surface damage more likely.



Other Issues

The formation of black marks during machining also depends on the type of aluminum alloy used. Aluminum alloys with high silicon content (e.g., 6061 and 6063) oxidize more quickly under the heat of machining. Magnesium-rich alloys also react to cutting temperatures, forming a dark oxide layer.



Solutions to Black Marks on Aluminum Parts

Optimize Cutting Tools

Regular Tool Maintenance

Regular tool maintenance prevents aluminum buildup, wear, and black mark formation. Replace tools when the flank wear exceeds 0.3mm, and clean residual materials off tools after operation. We strictly adhere to maintenance schedules and use ultrasonic cleaning to remove tool deposits, preserving tool performance.

Proper Tool Selection

Using incorrect tool materials or geometries can increase deformation forces on aluminum alloy parts. Carbide, diamond-coated, or PCD (Polycrystalline Diamond) inserts are ideal for maintaining part tolerances due to their wear resistance and sharp cutting edges. Multi-layer coatings deposited via PVD (Physical Vapor Deposition), such as TiAlN (Titanium Aluminum Nitride) and AlTiN (Aluminum Titanium Nitride), also improve resistance to aluminum adhesion and minimize heat accumulation.

For aluminum alloy machining, use carbide tools with TiAlN or DLC (Diamond-Like Carbon) coatings—this reduces aluminum adhesion by 70%. Choose tools with a 10–15° positive rake angle, and match the tool groove profile to the coating to lower cutting forces and heat, preventing black marks.



Enhance Coolant Management

Regular Coolant Maintenance

Replace and filter coolants every 2–4 weeks to remove bacteria and metal particles. Maintain the coolant concentration at 5%–10% to ensure cooling and lubrication performance, reducing heat generation and preventing discoloration. We check coolant filtration and pH levels daily to eliminate factors that cause black marks.

Use Corrosion Inhibitor Additives

Add corrosion inhibitors (e.g., phosphates) to form a protective film on part surfaces, preventing black mark formation. Follow the manufacturer’s recommendations for additive dosage to inhibit oxidation and avoid discoloration.

Adjust Machining Parameters

Optimize Cutting Speed and Feed Rate

Set cutting speeds and feed rates to recommended values to prevent overheating. For aluminum alloys, the cutting speed should be 500–1000 surface feet per minute (SFM). Lower heat generation reduces oxidation and material transfer, minimizing black marks.

Effective Chip Management

Use compressed air or high-pressure coolant to remove chips immediately during machining. Install chip evacuation equipment to keep the working area clean, preventing chip accumulation and friction against the workpiece.



Material Selection and Handling

Material Selection

Choose low-silicon aluminum alloys: 5000-series alloys are more resistant to discoloration than 6061, and 1000-series alloys also reduce surface issues. Select the alloy based on specific application requirements.

Proper Handling Methods

Handle parts with clean, lint-free gloves, and use soft, non-abrasive materials for stacking and moving to prevent friction marks and scratches.



Improve Environmental Control

Controlled Storage Environment

Store parts in areas with humidity <50% and a temperature of 20–25°C. Use VCI (Volatile Corrosion Inhibitor) bags or plastic wrap to protect against dust and moisture. We store parts in constant temperature and humidity conditions, and transport them promptly after machining to prevent oxidation and maintain surface quality.

Post-Machining Treatment

Clean parts immediately after machining to remove contaminants, and quickly transfer them to the next process. Minimize exposure to air to prevent oxidation, stains, and discoloration.

निष्कर्ष

Black marks on aluminum parts are caused by tool wear, machining settings, coolant issues, and handling methods. Manufacturers can achieve flawless surface finishes by identifying these factors and implementing the correct solutions. During CNC machining of aluminum parts, deformation, warping, and insufficient tolerances are common defects. However, by adopting strategies such as rigid fixturing, chip management, force balancing, tool optimization, and thermal control, part defects can be minimized. This allows us to leverage aluminum’s advantages of light weight and corrosion resistance while maintaining the precision and quality of machined parts. Careful process planning and deformation mitigation can fully unlock the potential of aluminum in precision components across all industries.
