MEETYOU CARBIDE produces a wide range of excellent tungsten carbide products (especially carbide rods, carbide blanks, carbide flat bar, tungsten carbide cold heading dies and tungsten carbide wire drawing dies), both standard and customized in accordance with customers’ needs. For example, in the past few years, we helped many companies to choose the best grade for their application, resulting in more effective and durable tools.In the past few years, compared with other tungsten carbide rod suppliers, we helped many companies to choose the best grade for their application, resulting in more effective and durable tools. For example, we developed MT12S grade which is consisted of 12% Cobalt with grain size under 0.6um WC as a replacement for previous 0.8um grain size for a carbide cutting tool company, helping them make harder and stronger tool. Plus, we also reduce the cost of material by more than 5%. As a tungsten carbide supplier, we will do our best.

 Also, product quality and process efficiency are examined by the strictest international standards. Strict control of our raw material supply chains and 100% traceability for every product batch throughout the entire manufacturing process.

 What is tungsten carbide rod?

Cemented carbide rods are an alloy product made by a powder metallurgy process.

The main characteristics of cemented carbide rods are stable mechanical properties, easy welding, high wear resistance and perfect impact resistance. Carbide rod is usually superior for the cutting of tough materials such as carbon steel or stainless steel, as well as in situations where other cutting tools would wear away faster, such as high-quantity production runs.

Applications of tungsten carbide rods

 Le barre in metallo duro vengono utilizzate principalmente per punte, frese e alesatori. Può essere utilizzato anche per utensili da taglio, stampaggio e misurazione. È utilizzato nelle industrie della carta, dell'imballaggio, della stampa e della lavorazione dei metalli non ferrosi. Inoltre, è anche ampiamente utilizzato nella lavorazione di utensili in acciaio ad alta velocità, frese in metallo duro, utensili in metallo duro, punte in metallo duro, acciaio ad alta velocità, utensili in metallo duro, ecc. Le barre di metallo duro possono essere utilizzate non solo per utensili da taglio e perforazione ma anche per aghi di input, varie parti soggette a usura dei rulli e materiali strutturali. Inoltre, può essere utilizzato in molti campi, come l'industria meccanica, chimica, petrolifera, metallurgica, elettronica e della difesa

The Grade Chart

grado MT09UMT10SMT12SMT25SMT06UMT20.8
Gamma ISO K10-K20K20-K40K20-K40K20-K40K05-K10K40-K50
WC+altro carburo%9190888893.585
co%91012126.515
Granulometria WCμm0.40.80.60.40.60.8
densitàg/㎝³14.514.4214.1214.114.8513.95
durezzaHv30189016001580175018901350
HRA 93.591.591.292.593.589.5
forza di rottura trasversaleN/mm²380041004200440037003800
kpsi 590609638540551551
resistenza alla fratturaMpa.m½10.214.214.713.510.117.5
modulo di giovanekpsi867808536080860800009100079086
resistenza alla compressionekpsi11451015101011091156957

The application

Grado Proprietà e applicazioni
MT09U Ultra-fine grain WC with 9%Co Very high wear resistance and excellent deformation resistance High cutting speed milling, finishing For use on hardened steel, plastics, fibre reinforced materials, HRC55-65
MT10S Ultra-fine grain WC with 10%Co  Very high wear resistance and excellent deformation resistance High cutting speed milling&drilling For general usage and suitable for all kinds of material belowHRC45
MT12S Submicron grain WC with 12%Co High toughness and wear resistance Specially designed for machining stainless steel For use on stainless steel, nickel-based alloys, titanium alloy and special alloy
MT25S Ultra-fine grain WC with 12%Co Very high toughness and high wear resistance Suitable for finishing processing and roughing of steels with hardness between 45 and 55HRC steels for surface treatments, nickel and nickel alloys
MT06U Submicron grain WC with 6% Co Very high wear resistance High cutting speed For drilling and milling of plastic composites, PCB, ceramics, woods and MDF
MT20.8 Submicron grain WC with 15%Co High strength and toughness High-speed punching For use on solid carbide punches

 Three production models

Tungsten Carbide Rod Supplier In China 1

Estrusione

L'estrusione è il metodo più diffuso per la produzione di barre di metallo duro. È un modo molto pratico per produrre barre di metallo duro lunghe come 330 mm, 310 mm e 500 mm, ecc. Tuttavia, il suo processo di essiccazione che richiede tempo è il punto debole a cui dobbiamo prestare attenzione.

Tungsten Carbide Rod Supplier In China 2

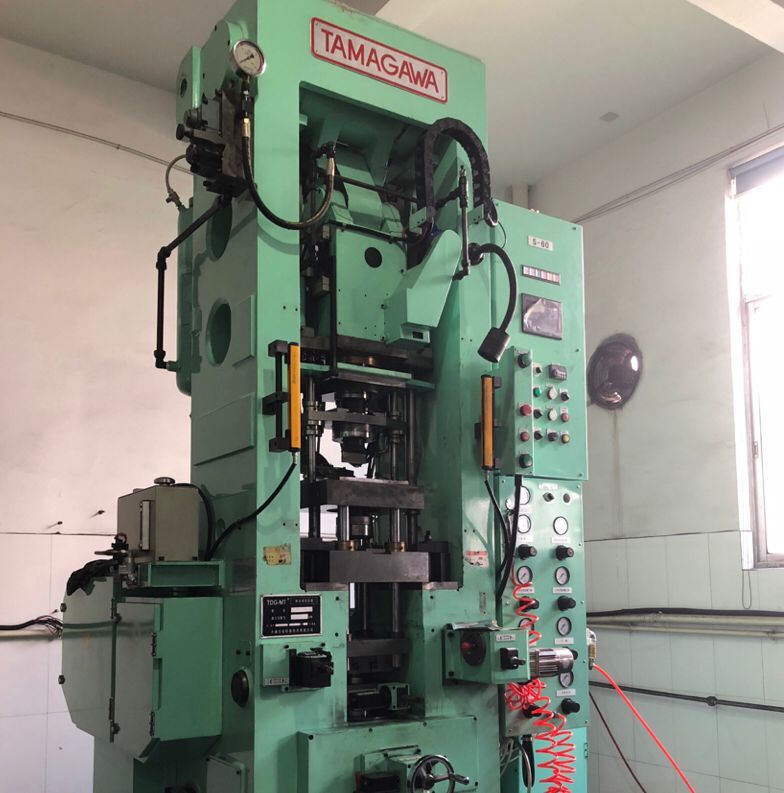

Stampa automatica

La pressatura automatica è il modo più efficace per pressare formati corti come 6*50,10*75,16*100, ecc. Può risparmiare sui costi di taglio delle barre di metallo duro e non ha bisogno di tempo per asciugarsi. Quindi il tempo di consegna è più veloce dell'estrusione. D'altra parte, le aste lunghe non possono essere prodotte con questo metodo.

Tungsten Carbide Rod Supplier In China 3

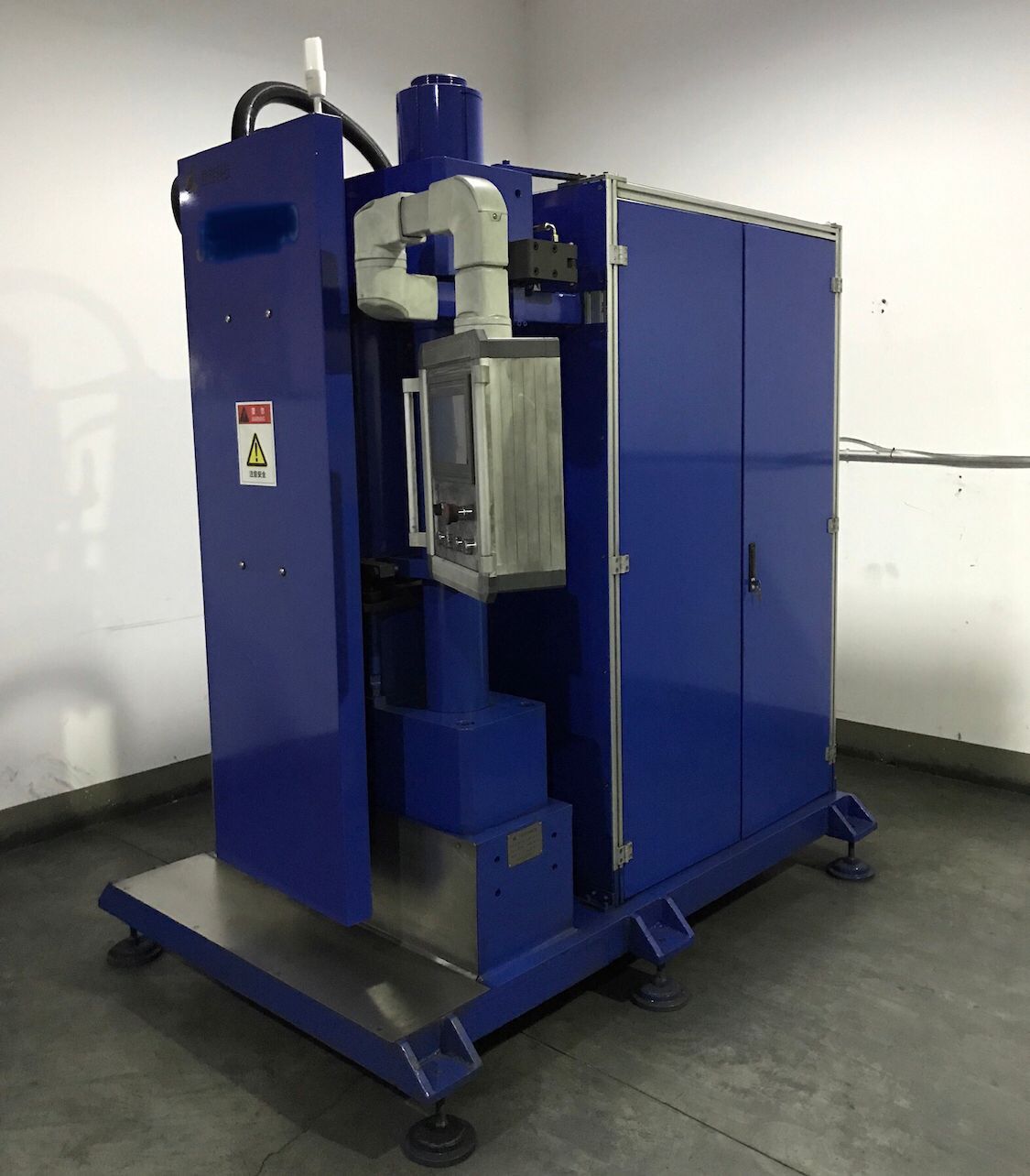

Pressa isostatica a freddo

La pressa isostatica a freddo (CIP) è l'ultima tecnologia per la produzione di barre di metallo duro. Perché può produrre barre lunghe come 400 mm ma non richiede cera come l'estrusione, quindi non ha nemmeno bisogno di tempo per asciugarsi. Questa è l'opzione migliore quando si realizzano diametri grandi come 30 mm e 40 mm.

Why we are a good tungsten carbide rod supplier?

✔100% virgin material from Germany Powder H.C.Starck

✔Raw material stock available

✔Custom case sizes available

✔Various carbide grades available

✔Low cost

Our aim is to satisfy our customers, and we regard “the best can be better” and “to maximize the satisfaction of customers” as its operation commitment. MEETYOU CARBIDE will be with you for a bright future.


“It really saves me time and effort. Meetyou Carbide’s carbide rod is exactly what our business has been lacking. It provides value more than its cost.”

– Jacquetta R.

Febbraio 10, 2022
