Hot Isostatic Pressing (HIP) is a special heat treatment process for metal or ceramic materials, and an important means of preparing high-performance materials. This technology can be used for powder metallurgy forming or densification treatment of formed castings (such as loose and shrinkage castings of titanium alloys, superalloys, aluminum alloys, etc.). After hot isostatic pressing treatment, the wear resistance, corrosion resistance and mechanical properties of the material will be greatly improved, and the fatigue life can be increased by 10 to 100 times.



Processing Characteristics

• High temperature: up to 2000°C
• High pressure: up to 200 MPa
• Isostatic pressure: using inert gas as the pressure transmission medium, with the same pressure uniformly acting on the surface of the component from all directions



Mainly Applied Material Systems

Superalloys, titanium alloys, aluminum alloys, copper alloys, refractory metals, cemented carbides, stainless steels, corrosion-resistant alloys, ceramics, composite materials, electronic materials, functional materials, etc.

Why Use Hot Isostatic Pressing?

Any product made of materials has a certain service life and cannot be used indefinitely. There are two fundamental reasons for material failure: one is the change in the internal structure of the material, i.e., the composition of the material changes due to interference from the external environment, and the new composition fails to achieve appropriate performance, leading to material failure; the other, more common reason, is the presence of residual impurities, microcracks, pores, etc., inside the material, which form performance mutation points, referred to as material defects.

During the working state of the material, such as when it is subjected to high-temperature cycles and stress cycles, stress concentration will occur at the locations of performance mutations, eventually leading to fatigue propagation at these points and material fracture failure. Currently, no traditional forming method can directly eliminate residual internal defects in materials, and subsequent processing is required.



Of course, in conventional working environments, there is no need to impose excessively high requirements on material performance, and some defects are allowed as long as they do not affect the use of the material. However, in certain special working environments, such as aircraft engines, nuclear reactors, heavy-duty gas turbines, and offshore oil drilling, materials need to withstand extremely high temperatures, pressures, amplitudes, or corrosive environments. At this time, the performance requirements for materials are extremely high: they not only need ultra-high strength, toughness, and corrosion resistance but also extremely high stability. In such cases, eliminating internal defects in materials becomes particularly important.

As a special metal heat treatment process, hot isostatic pressing is currently the most effective heat treatment method for eliminating internal material defects and also the material forming method that minimizes internal material defects. Therefore, hot isostatic pressing is a routine processing step for important key components in various fields worldwide.



Classification of Hot Isostatic Pressing Treatments

According to the requirements of the products to be processed, hot isostatic pressing treatment services can be divided into the following three categories:

Densification Treatment

During the service life of materials, residual pores and microcracks inside the materials are not only the initiation points of fractures but also the sources of wear and corrosion. In complex working environments such as aircraft engines, nuclear reactors, and heavy-duty gas turbines, once a material fractures and fails, it will lead to extremely serious consequences.

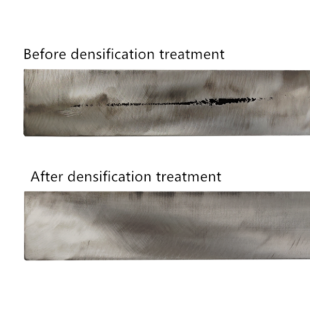

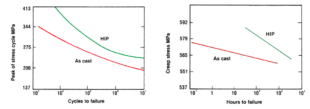

After hot isostatic pressing treatment, the internal structure of the material becomes densified, with all pores and defects eliminated, forming a uniform and dense whole. This significantly improves the material’s wear resistance, corrosion resistance, mechanical properties, and fatigue strength. In the casting process, uneven temperature diffusion during material cooling leads to inherent process defects such as internal porosity, segregation, shrinkage cavities, and microcracks, which reduce material performance, service life, and stability. Similarly, in metal injection molding and 3D printing processes, there are issues of loose internal structure and residual defects in the materials.

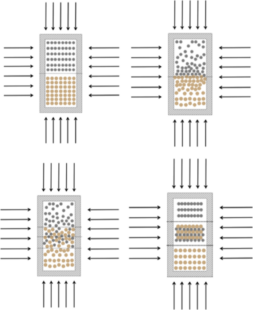

Hot isostatic pressing densification treatment refers to placing products with internal defects such as castings, injection-molded or 3D-printed products in a high-temperature environment. Using inert gas as the force-transmitting medium, it exerts equal isostatic pressure on the products, forcing the products to undergo deformation in the solid phase and diffusion at the atomic level. As a result, internal pores and microcracks disappear, eliminating the fracture initiation points (stress concentration points) inside the material, thereby greatly improving the overall performance of the products.



Diffusion Bonding

In industrial manufacturing, engineers usually bond different materials together to achieve the optimal combination of material properties. However, conventional welding methods often fail to achieve this or yield poor results, especially for joining irregularly shaped parts or large-sized components.

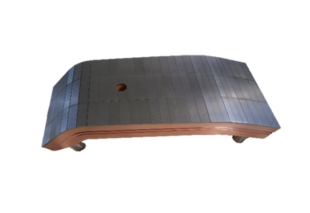

Hot isostatic pressing can realize solid-solid bonding, solid-powder bonding, and powder-powder bonding between two or more metal materials or ceramic materials through the action of high temperature and high pressure, integrating multiple materials into a whole. Compared with other bonding technologies, the junction of the two materials is tightly bonded without defects, and the performance at the junction is the same as that of the base material.

When bonding materials with the same performance, since no liquid phase is generated at the interface, the interface bonding strength is equivalent to that of the base material. When bonding materials with different performances, a good metallurgical bond can be achieved at the interface, and the performance is not lower than the lower of the two materials.

Due to the different thermal expansion coefficients of different metals, dislocations and internal stresses will be generated at the interface when heated, affecting the bonding effect. In recent years, engineers at Gangyan Haopu have made leaping progress in diffusion bonding technology, developing bonding technologies between different materials and applying this technology to more types of materials, such as copper, stainless steel, tungsten alloys, cobalt-based alloys, nickel-based alloys, chromium, molybdenum, etc.



One-time Powder Metallurgy Forming

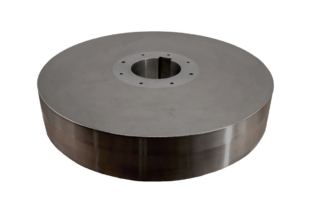

Hot isostatic pressing powder metallurgy refers to the use of hot isostatic pressing process to fill powdery raw materials into specially designed containers, and directly sinter them into products of specified shapes under the action of high temperature, high pressure and isostatic pressure. Based on the advantages of powder metallurgy, hot isostatic pressing technology can consolidate powdery materials into finished products with higher density and better performance.



Application Fields of Hot Isostatic Pressing

Aerospaziale

To meet the current development trends of the aerospace industry, breaking through key technologies of aero-engines and accelerating the industrialization of aero-engines have become one of the core tasks.

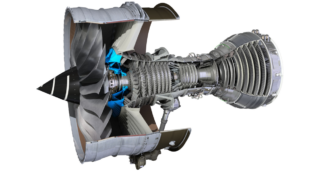

Aero-engine components are diverse and mainly manufactured using various materials such as aluminum alloys, titanium alloys, superalloys, and alloy steels. Therefore, their forming technologies are extremely complex and diverse. As engines develop toward lightweight, high performance, and long service life, components must adopt high-performance materials and integral forming technologies to meet these requirements.

The hot isostatic pressing integral forming technology has shown strong technical and economic advantages, especially in the manufacturing of titanium alloy and nickel-based superalloy components. Through hot isostatic pressing treatment, components can achieve 100% densification, eliminating inherent internal defects in precision casting processes of titanium alloys and superalloys, such as pores, internal cracks, and local porosity. This improves the overall mechanical properties of the components, especially fatigue performance, while reducing costs and improving energy efficiency.

Heavy-Duty Gas Turbines

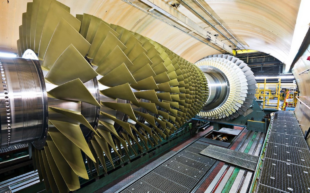

As the power machinery with the highest heat-work conversion efficiency to date, heavy-duty gas turbines are widely used in mechanical drive (such as ships and trains) and large-scale power plants. As a rotating impeller-type engine, gas turbine blades are the core components of heavy-duty gas turbines. Since the impellers must work stably at high temperatures of 1400°C–1600°C for a long time, this is a working environment with extremely high requirements for material quality and performance. Therefore, heavy-duty gas turbine blades are all made of superalloy materials.

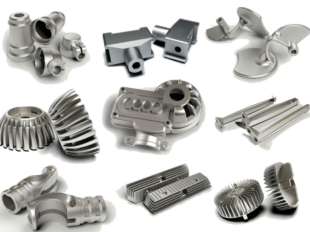

In the casting process, slag inclusions, cracks, porosity, pores, and deformation of materials will affect the strength and performance of the blades. These defects cannot be avoided in the production process itself and can only be addressed through subsequent extreme treatments, among which hot isostatic pressing is an important process.

Superalloys treated by hot isostatic pressing can basically eliminate residual defects and deformation problems in precision casting, greatly improving material performance and fatigue resistance, thereby significantly increasing the service life of heavy-duty gas turbines. Compared with single-crystal blades, they also have huge cost advantages. Currently, the working time of heavy-duty gas turbine blades has been increased to 30,000 to 50,000 hours, which is nearly 50% longer than that of traditional components not treated by hot isostatic pressing.



Additive Manufacturing

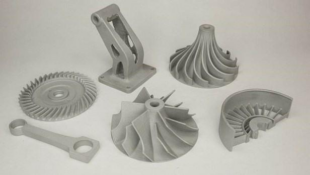

In the process of additive manufacturing, internal defects such as pores, microcracks, and residual stress will remain. The size and type of defects depend on specific printing process parameters. These defects have a great impact on the mechanical properties of materials, especially fatigue performance. Through hot isostatic pressing treatment, these defects can be eliminated, and the material density can reach the theoretical value.

Fatigue strength is a crucial factor for certain important components, such as aerospace components and medical implants. Therefore, HIP treatment is a routine process for these components. The yield strength of HIP-treated products will be lower than that of the original material, but ductility is improved. Since materials in additive manufacturing undergo cooling rates of thousands of degrees per second, high yield strength is generated. During subsequent conventional heat treatments such as HIP and annealing, the microstructure coarsens, leading to reduced yield strength but improved ductility.

Whether trace pores or a large number of pores are generated internally during 3D printing, they can all be eliminated by HIP treatment. Therefore, there is no need to impose high requirements on 3D-printed products in one-time processing; a large number of “low-quality products” can be produced first and then batch-treated by hot isostatic pressing to meet the requirements, saving time and costs. In addition, since the pores in materials are uniformly distributed internally during additive manufacturing, the volume shrinkage in all directions is uniform during HIP densification, avoiding deformation that occurs in general powder metallurgy near-net shaping processes. At the same time, residual stress in the products is released, achieving multiple benefits in one step.

Other Fields

In addition to the above key application fields, hot isostatic pressing is also used in general industries, such as oil and gas, automobiles, tool and die materials, medical care, consumer electronics, functional ceramics, extruders/injection molding machines, sputtering targets, etc.
