简体中文 Coal mining bit is the core component of mining equipment such as shearers and roadheaders in the coal mining process, known as the “teeth” of these machines. Specifically, shearer bits are responsible for cutting coal seams to form coal walls, while roadheader bits take on the task of developing roadways, opening up passages in the mixed zone of coal seams and rocks. Typically consisting of a carbide tip and a steel body, the carbide tip is the key working part that bears impact and wear, while the steel body provides structural support and connects to the mining equipment. During operation, coal mining bits rotate or reciprocate at high speed, breaking coal bodies through impact and cutting. Their working environment is extremely harsh: they not only have to deal with gangue mixed in coal seams but also bear high temperatures generated by long-term friction, which puts forward strict requirements on their wear resistance, impact resistance and corrosion resistance. As an indispensable consumable in coal mining, the quality and suitability of coal mining bits directly affect mining efficiency, safety and comprehensive costs.
Material Characteristics of Carbide Coal Mining Bit

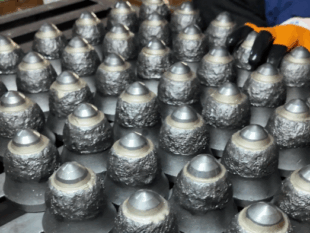

Carbide coal mining bits, the most widely used type in the market, stand out due to their excellent material properties. The core advantage lies in the carbide tip, which is mainly made of tungsten carbide and cobalt through high-temperature and high-pressure sintering. Tungsten carbide has extremely high hardness (up to HRA 87 or above), ensuring excellent wear resistance when cutting coal and rock; cobalt acts as a binder, enhancing the toughness of the carbide tip and reducing the risk of chipping.
The steel body of the carbide coal mining bit is usually made of high-strength alloy steel, which undergoes special heat treatment processes such as quenching and tempering. This treatment improves the overall strength and toughness of the steel body, enabling it to withstand the impact load during mining without bending or breaking. The combination of high-hardness carbide tip and high-toughness alloy steel body makes the carbide coal mining bit have a balanced performance of wear resistance and impact resistance, which can adapt to the complex and harsh working conditions of coal mining and significantly extend the service life compared with ordinary steel bits.
Standard Shapes of Coal Mining Bit and Selection Rationale
The main shapes of coal mining bits are standardized according to national standards, including cylindrical, mushroom, conical and cap types. These shape designs are not randomly determined, nor are they merely to reduce the single weight of the alloy and lower costs.
Their core purpose is to match different mining conditions and optimize the stress state and wear mode of the bits. The national standard for coal mining bits specifies the dimensional parameters and shape requirements of various types of bits, which is to ensure the interchangeability of bits and the stability of mining operations, and at the same time guide enterprises to select appropriate bit shapes according to actual working conditions.
For example, in the face of extremely hard rock conditions, the national standard implicitly prioritizes the selection of cylindrical bits through relevant performance indicators; for ordinary hard rock or coal seams, conical or mushroom bits are more in line with the operational requirements specified by the standard. This standardized shape classification provides a scientific basis for the rational selection of coal mining bits, helping to avoid performance mismatches caused by random selection.
Coal Mining Bit Selection Based on Stratum Hardness and Environment
Selecting the right coal mining bit must be based on the specific mining environment, and the core basis is the hardness grade of the rock stratum (expressed by the Protodyakonov coefficient f). Different stratum grades and environmental conditions correspond to different bit selection requirements, which are detailed as follows:
Selection for f1-f8 Grade Stratum
For stratum with f1-f2 grade, including relatively soft shale, chalk and hard coal, standard coal mining bits are suitable. The bit tip angle and alloy strength of standard bits are designed according to specific parameters, and a small alloy tip can meet the mining needs while improving mining speed. For stratum with f3-f4 grade, such as hard argillaceous shale, unconsolidated sandstone and limestone, and soft gravel, standard bits cannot adapt, so semi-rock bits are required.
The body of semi-rock bits is made of high-quality high-strength alloy steel, and after special heat treatment, their impact resistance is 2-5 times higher than that of ordinary bits. For stratum with f5-f8 grade, mainly general sandstone and iron ore, full-rock bits are needed. The tip of full-rock bits is made of high-hardness tungsten alloy, sintered at high temperature and high pressure; the alloy hardness reaches HRA 87 or above, and the wear-resistant layer hardness reaches HRC 68 or above. The welding part between the bit body and the tip adopts brazing and quenching process, with high filling degree and strong shear strength of the weld, ensuring no tip falling during use.
Selection for f9-f11 Grade Stratum
For stratum with f9-f11 grade, including dense granite, very hard sandstone and limestone, quartz veins, conglomerate and hard iron ore, hard rock bits should be selected. The overall structure of hard rock bits is optimally designed; the body is made of low-carbon alloy structural steel, and after overall treatment, it has both excellent hardness and toughness.
Selection for Stratum Above f12 Grade
For stratum above f12 grade, such as granite, quartz porphyry, siliceous schist, quartzite, sandstone and limestone, ordinary bits will be scrapped within a few hours of work, so higher-strength hard rock bits are required. This type of bit adopts an alloy tip with strong impact resistance and a wear-resistant layer; the tip hardness reaches HRC 48, and the impact toughness is 70J/cm², which can work continuously for more than ten hours, known as the “hard rock nemesis”.
Cost-Effectiveness of Coal Mining Bit
Manufacturing and Fixed Costs
When evaluating the cost-effectiveness of coal mining bits, it is necessary to get rid of the one-sided view of only focusing on the unit price, and comprehensively consider the manufacturing cost, raw material cost, service life and subsequent maintenance cost. From the manufacturing side, coal mining bits are not ordinary mechanical parts; their production process includes multiple high-energy-consuming links such as cold forging forming, heat treatment, high-temperature brazing and precision welding.
According to domestic energy consumption accounting standards, the energy consumption of heat treatment and brazing links accounts for more than 30%; affected by the rise in electricity and natural gas prices, the manufacturing cost has increased by an average of 8%-12%. In addition, the depreciation and maintenance of high-precision molds, welding robots and testing equipment are also pushing up fixed costs, so manufacturers that maintain stable quality are under great cost pressure.
Raw Material Cost: Alloy Price Fluctuations Dominate Cost Changes
From the raw material side, the cost of the carbide tip accounts for 40%-60% of the total cost of the bit, so the fluctuation of alloy prices directly affects the product price. At present, the price of tungsten carbide alloy is on the rise due to tight supply of upstream tungsten concentrate, soaring demand in the new energy and mold industries, and rising international transportation and energy prices.
Market Misunderstanding: Low-Price Bits Hide Quality Risks
From the market side, low-price bits often cut corners on materials—such as using low-grade carbide with insufficient hardness, or using ordinary carbon steel for the bit body, or even omitting the quenching and tempering process. Such bits are prone to tip chipping and body bending in high-intensity operations. In addition, low-price bits mostly use ordinary flame welding with unstable temperature control, resulting in insufficient welding strength (often less than 200MPa) and easy tip falling during operation.
Regular enterprises conduct multiple rounds of testing on each batch of bits, including tip hardness, impact toughness testing, welding strength sampling inspection, and even wear testing under simulated working conditions; while small workshop-style enterprises often omit quality control links, and product quality depends entirely on “luck”. Although the price is low, it lays great hidden dangers for subsequent operations.
Core Cognition of Cost-Effectiveness: Comprehensive Cost Is More Important Than Unit Price
In fact, under the background of high material prices, “cheap bits” are not necessarily really cheap—their average service life is reduced by 50%, the replacement frequency is doubled, which leads to the comprehensive increase of labor cost, downtime cost and bit holder wear cost, and the final unit excavation cost is even higher. Therefore, the cost-effectiveness of coal mining bits lies in the balance between performance, service life and comprehensive cost; products that can extend the bit replacement cycle and ensure stable construction are more cost-effective.
Customer Case 1: Meetyou Bits Reduce Consumption by 75% in Guizhou F10 Hard Rock Mine

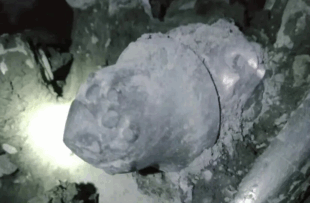

Practical customer cases fully verify the importance of selecting coal mining bits according to working conditions. In a coal mine in Jinsha, Guizhou, during roadway excavation, when encountering hard rock above f10 grade, the consumption of coal mining bits soared—carbide tip chipping, frequent tip falling and continuous shutdown not only slowed down the progress but also made the cost rise sharply.
To solve this problem, the mine conducted a on-site comparison test using the industry-recognized “half-and-half method”: the same EBZ280 roadheader used Meetyou carbide bits on one half of the drill bit and the original competitor’s products on the other half. The test results showed that after only about 1 meter of excavation, the difference was obvious: the competitor’s products needed to replace 4 bits, and the failure was mostly manifested as carbide tip damage and falling; while Meetyou’s bits had 0 replacements, only slight uniform wear. Calculated by consumption, the consumption of Meetyou’s bits was reduced by 75%-100% compared with the competitor’s, showing a significant service life advantage.
Customer Case 2: Super Wear-Resistant Bits Solve Hubei Phosphate Mine’s Cost Crisis
Another case is an emergency help from a phosphate mine customer in Hubei. The project was progressing smoothly in excavation, but in the recent week, the consumption of coal mining bits suddenly increased exponentially—the customer said, “We change more bits in one day than in the past week! The progress is seriously delayed.”
After the intervention of Meetyou’s technical team, it was found that the root cause was the sudden change in geology: the excavation section had transitioned from the ordinary hard rock section to the high-hardness ore section, with the Protodyakonov coefficient of the rock reaching f=10, and the phosphate rock had extremely strong abrasiveness, which wore metal like a “grinding wheel”.
The customer still used the previous ordinary bits; in the face of f10 hard rock, the toughness of the ordinary alloy was insufficient, chipping at the touch; coupled with the high abrasiveness of the phosphate mine, the steel body of the bit tip was quickly worn, leading to the premature falling of the carbide tip. To solve this problem, the technical team suggested the customer to fully replace the enhanced super wear-resistant coal mining bits developed for high-hardness and high-abrasion strata. The solution included two key upgrades: alloy upgrade (impact resistance) and body reinforcement (wear resistance). After replacing the scheme, the effect was immediate: the number of chipped bits decreased, the downtime for bit replacement was greatly shortened, the single-shift footage returned to normal, and the comprehensive excavation cost (including labor and downtime losses) was reduced by 15% compared with the original bits.
Conclusion and Consultation
In conclusion, there is no absolute good or bad coal mining bit, only suitability. The core of truly reducing costs and increasing efficiency lies in the scientific matching between the working environment and the bit product, rather than blindly reducing the single purchase price. The working conditions of coal mining are complex and changeable—when the stratum hardness, abrasiveness or humidity changes, the bit selection scheme must be adjusted accordingly.
Choosing the right coal mining bit according to the actual working conditions is like “using a more wear-resistant tooth to bite harder bones”, which can maximize the service life of the bit, reduce replacement frequency, and ultimately reduce the comprehensive mining cost. If your mine or tunnel project also encounters problems such as abnormal coal mining bit consumption and difficult hard rock excavation, please do not try blindly. You are welcome to leave a message in the background, or directly send your rock hardness data and on-site wear photos to us. We will provide you with one-on-one working condition diagnosis, help you analyze the key problems, and customize the most cost-effective coal mining bit solution for you.
