Quenching steel machining is a critical process in modern manufacturing, directly impacting the production efficiency and quality of precision components. This article shares core insights and practical solutions for quenching steel machining with readers.

​

Key Characteristics of Quenching Steel​

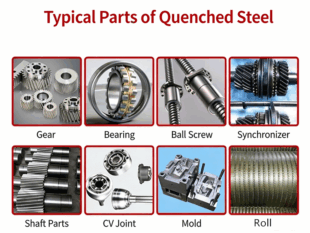

Quenching steel refers to metal components that have undergone quenching treatment, with martensite as the main microstructure and a hardness greater than 50 HRC. Its unique material properties determine the difficulty of machining, and the core characteristics are as follows:​

High Hardness and Strength with Low Plasticity​

When the hardness of quenching steel ranges from 50 to 60 HRC, its tensile strength (Rm) can reach 2100–2600 MPa, making it one of the most difficult-to-machine materials. The material has almost no plasticity during cutting, which requires the tool to withstand high cutting forces and maintain stable cutting performance. Unlike ordinary steel, quenching steel does not undergo plastic deformation before fracture, leading to concentrated stress on the tool edge during quenching steel machining.

High Cutting Force and Temperature​

The unit cutting force (Kc) of quenching steel can reach 4500 MPa, which is much higher than that of ordinary steel. Meanwhile, the cutting temperature is more than 50% higher than that of general steel processing—often exceeding 800°C at the tool-workpiece interface—due to low thermal conductivity that traps heat in the cutting zone. This extreme temperature easily leads to tool wear, thermal deformation of the workpiece, and even microcracks on the machined surface.

​

No Chip Formation and Low Surface Roughness​

Due to the high hardness and brittleness of quenching steel, the cutting temperature is far beyond the critical point for chip formation, so no burrs or built-up edges are generated during machining. This feature is a major advantage of quenching steel machining, as it helps to achieve a lower surface roughness (usually Ra 0.8–3.2 μm) without additional finishing processes, meeting the precision requirements of high-quality components.​

High Tool Wear and Chipping Risk​

The concentrated cutting force and heat during machining act on the tool edge, resulting in serious tool wear (including abrasive wear and adhesive wear) and frequent chipping. Therefore, the tool for quenching steel machining must have excellent wear resistance and impact resistance to ensure the stability of the machining process, especially in intermittent cutting scenarios.

​

Tool Selection for Quenching Steel Machining​

Tool material selection is the core premise of quenching steel machining, and the tool material must have high hardness, wear resistance, thermal stability, as well as certain bending strength and thermal conductivity. The commonly used tool materials include the following three types:​

карбид​

The priority choice is fine-grained or ultra-fine-grained carbide added with TaC or NbC. The addition of TaC or NbC can significantly improve the room temperature and high-temperature hardness and bending strength of the carbide, while grain refinement enhances its toughness. After optimization, the bending strength of the hard alloy can increase by 600–800 MPa, effectively reducing tool wear during quenching steel machining. Common hard alloys for this purpose include YS8, YG600, YG610, YG726, YG758, and YG813. If the above grades are not available, other carbide can also be used, but the tool wear rate is relatively high and the tool life is short—usually 15–30 minutes for continuous cutting.

Figure 1: Drilling of Quenched Steel Using Cemented Carbide Drills

Ceramic

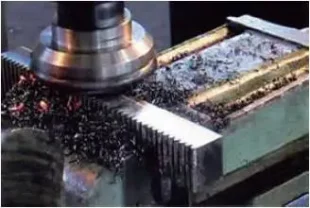

Figure 2: Milling of Quenched Steel Using Ceramic Tools

Ceramic tools are prepared by adding TiC, ZrO₂, or other metal elements to Al₂O₃ and adopting hot-press forming technology, which improves the compactness and fracture toughness of the ceramic. The ceramic has a hardness of 95.5 HRA, a bending strength of 800–1200 MPa, and a thermal stability of up to 1200°C. Ceramic tools excel in quenching steel machining for turning, milling, planing, and boring, with cutting speed and tool life 2–3 times higher than those of carbide tools. However, they are more brittle and require stable process system rigidity to avoid chipping.​

Cubic Boron Nitride Composite Sheet (PCBN)​

PCBN has a hardness of 8000–9000 HV and a thermal stability of 1400–1500°C, second only to diamond. Its bending strength after compounding with carbide reaches 1500 MPa, making it the most suitable tool material for semi-finishing and finishing of quenching steel. PCBN tools can maintain stable performance even at high cutting speeds, effectively reducing tool wear and improving machining efficiency—realizing the replacement of grinding with cutting in quenching steel machining, which shortens processing cycles by 30–50%.

Supplementary: Key Tool Geometric Parameters for Quenching Steel Machining​

To maximize tool performance in quenching steel machining, geometric parameters must be optimized for high strength and heat dissipation:​

Rake angle (γ₀): Choose zero or negative values (-10° to 0°) to enhance edge strength; for intermittent cutting, adopt larger negative angles (-15° to -10°) to resist impact.​

Relief angle (α₀): 8° to 10° is optimal, balancing edge strength and chip flow.​

Main and auxiliary cutting edge angles (κr, κr’): κr = 30°–60°, κr’ = 8°–10° to increase tool tip strength and expand heat dissipation area.​

Edge inclination angle (λs): Negative values (-15° to -10°) to protect the tool tip from direct impact.​

Tool tip radius (rε): 0.8–1.6 mm to reduce stress concentration and improve surface quality.

Optimization of Cutting Parameters for Quenching Steel Machining​

Cutting parameters, including cutting speed, cutting depth, and feed rate, directly affect the efficiency and quality of quenching steel machining. The selection must be based on tool material, workpiece properties, shape, process system rigidity, and machining allowance.​

Cutting Speed (vc)​

As the key parameter controlling temperature and tool life:​

Carbide tools: 30–75 m/min (continuous cutting); 15–35 m/min (intermittent cutting)​

Ceramic tools: 60–120 m/min (continuous cutting); 30–60 m/min (intermittent cutting)​

PCBN tools: 100–200 m/min (continuous cutting); 50–100 m/min (intermittent cutting)​

A practical indicator for quenching steel machining: continuous turning with dark red chips indicates optimal cutting speed. Too high a speed accelerates tool wear, while too low a speed fails to soften the workpiece surface, reducing efficiency.​

Cutting Depth (ap)​

Typically 0.1–3 mm, determined by machining allowance and rigidity. For large allowances (exceeding 3 mm), adopt multi-layer cutting (0.5–1 mm per layer) to avoid excessive cutting force and workpiece deformation. In quenching steel machining of thin-walled workpieces, reduce cutting depth to 0.1–0.3 mm and add rigid supports to prevent vibration.​

Feed Rate (fz)​

Generally 0.05–0.3 mm/r. For high-hardness workpieces (HRC > 60) or intermittent cutting, reduce to 0.05–0.15 mm/r to prevent tool chipping. When threading quenching steel, further reduce feed rate and add 30°–45° lead-in/out angles for stable cutting.​

Practical Cases of Quenching Steel Machining​

Turning on Cold Sensitive Bearing Roller Die Top Rod of quenching steel machining​

Workpiece material: Cr12MoV alloy tool steel (quenching hardness HRC 62–66); workpiece is slender (length-diameter ratio > 10) and prone to quenching deformation, with 2 mm machining allowance (grinding is impractical). Quenching steel machining solution: LT55 ceramic tool with parameters γ₀ = -8°, α₀ = 8°, κr = 75°, κr’ = 15°, rε = 0.5 mm; cutting parameters vc = 35 m/min, ap = 0.3–0.5 mm, f = 0.1–0.2 mm/r. Results: tool life 25 minutes, surface roughness Ra = 3.2–1.6 μm, meeting precision requirements.​

Planing of Quenched High-Speed Steel​

Workpiece: W18Cr4V high-speed steel (HRC 64), dimensions 120 mm × 40 mm. Tool: YM052 carbide with γ₀ = -10°, α₀ = 6°–8°, κr = 45°, κr’ = 15°, λs = -10°, rε = 1 mm. Cutting parameters: vc = 8 m/min, ap = 0.5–0.8 mm, f = 0.1–0.15 mm/stroke. Results: tool life 21 minutes, surface roughness Ra = 3.2 μm, replacing traditional grinding with 40% higher efficiency.​

Turning of Quenched Bearing Steel (GCr15)​

Workpiece: bearing outer ring (HRC 62); tool: PCBN with γ₀ = -6°, α₀ = 8°, κr = 45°, κr’ = 45°, rε = 1.2 mm, λs = 0°. Cutting parameters: vc = 115 m/min, ap = 0.3 mm, f = 0.1–0.2 mm/r. Results: tool life 55 minutes, surface roughness Ra = 1.6 μm, achieving “turning instead of grinding” in quenching steel machining.​

Вывод​

Quenching steel machining is a key process in modern manufacturing, with tool selection, geometric parameter optimization, and cutting parameter matching as the core to overcoming its processing difficulties. Carbide, ceramic, and PCBN are the primary tool materials for quenching steel machining, each suitable for different scenarios: carbide for general conditions, ceramic for medium-high speed continuous cutting, and PCBN for high-precision, high-efficiency processing.​

By mastering the material characteristics of quenching steel, selecting appropriate tools and parameters, and following standardized operating procedures, engineers can achieve efficient, high-precision quenching steel machining, replacing traditional grinding to reduce costs and improve productivity. This article shares practical technologies and cases to provide actionable guidance for professionals in the field, contributing to the advancement of quenching steel machining in manufacturing.
