简体中文 Understanding CNC Surface Roughness: How Smooth Does Your Part Really Need to Be?
Walk into any machining workshop, and you will almost always hear the same question: “What CNC surface roughness is required for this surface?” You may not realize that behind this simple number lies a three-way trade-off among cost, performance, and appearance—all closely tied to this critical machining parameter.
Today we dive into the selection of surface finishes in CNC machining. Why can prices differ by several times for identical parts, just with different roughness requirements? The answer lies in how CNC surface roughness directly shapes manufacturing complexity, functional performance, and overall production costs.
What Exactly Is CNC Surface Roughness?
Put simply, CNC surface roughness refers to the smoothness of a part’s surface after CNC machining. The industry-standard parameter to quantify it is Ra (arithmetic mean roughness). A smaller Ra value means a smoother surface, while a larger Ra indicates a rougher one. This core metric dictates how the part interacts with its environment: it influences wear resistance, sealing capability, visual appeal, and even long-term service life. In this article, we’ll break down common grades of CNC surface roughness and their ideal applications.
0.4 μm Ra: The Cost of Extreme Smoothness

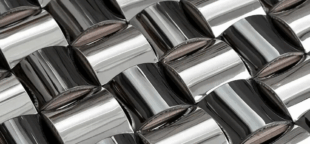

Imagine a near-mirror finish—that is the level of smoothness achievable with a CNC surface roughness of 0.4 μm Ra. At the microscopic level, surface variations are only 0.0004 mm—for context, a human hair (about 0.05 mm) is 125 times thicker than this value.
This ultra-smooth finish is not just for aesthetics; it’s a functional necessity. In the aerospace industry, countless critical parts demand this standard: aircraft engine blades, key fuel system components, and high-precision bearings. For bearings rotating at tens of thousands of RPM, any deviation from this precise standard can increase friction, cause heat buildup, and ultimately lead to catastrophic failure.
However, such exceptional CNC surface roughness comes with a steep price. Achieving 0.4 μm Ra requires multiple machining stages: roughing, semi-finishing, finishing, and final polishing or lapping. Each step demands specialized tools, precise parameter adjustments, and rigorous quality control to ensure the desired result. These factors drive up costs significantly, so this grade should only be specified when absolutely necessary.
0.8 μm Ra: The Art of Balanced Finish

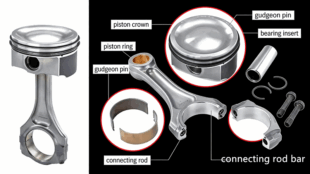

If 0.4 μm Ra is too costly but reliable surface quality is still required, a CNC surface roughness of 0.8 μm Ra strikes the perfect balance. This grade is widely adopted in automotive manufacturing—engine pistons, transmission gears, and hydraulic components all rely on this level of smoothness to minimize wear without the expense of extreme precision.
Consumer electronics also frequently use this specification: the metal frames and back covers of smartphones often feature this grade, offering a smooth tactile experience and premium appearance at a manageable cost. The key principle here is that CNC surface roughness must align with the part’s function. Sealing surfaces (like hydraulic cylinder pistons) need this level of smoothness to prevent leakage, while sliding components (such as machine tool guides) depend on it for stable movement and extended service life.
1.6 μm Ra: The Industrial Standard Finish
Regarded as the “workhorse” of CNC surface roughness grades, 1.6 μm Ra is the most common specification in industrial manufacturing. It’s used for countless internal mechanical parts: gearbox housings, equipment brackets, general shafts, and non-critical fittings. These components require adequate surface quality for functionality but don’t involve high-speed movement, precision fitting, or visual display.
What makes this grade so popular? It’s easily achievable with standard CNC finishing processes—no additional polishing is needed. Machining time is reasonable, and quality control is straightforward, keeping production costs in check. For most general mechanical functions, this CNC surface roughness is more than sufficient. If you’re unsure which grade to choose, 1.6 μm Ra is a safe bet: it avoids functional issues from excessive roughness and unnecessary expenses from over-smoothing.
3.2 μm Ra: Practical Roughness for Non-Critical Parts

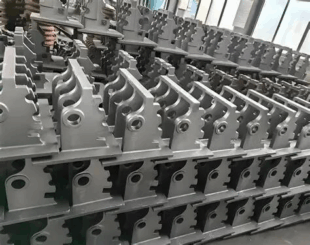

Not all parts require a smooth finish, and a CNC surface roughness of 3.2 μm Ra is fully adequate for many applications. This grade is ideal for internal structural components: machine frames, support plates, inner housing surfaces, and parts that don’t come into direct contact with other components.
The primary advantage of this specification is cost savings. Machining time is shorter, tools are less specialized, and quality control is simple—making it perfect for mass-produced parts. Additionally, a slightly rougher finish can enhance adhesion for painting, coating, or adhesive applications; overly smooth surfaces may cause coatings to peel or bond poorly. However, caution is needed: incompatible roughness can lead to problems. Mating parts with excessive roughness may experience reduced contact area, resulting in loosening or accelerated wear.
How to Select the Right CNC Surface Roughness
Choosing the optimal CNC surface roughness requires evaluating four key factors:
- Contact Conditions: Sealing surfaces need a CNC surface roughness of 0.8 μm or smoother; metal-to-metal moving pairs require at least 1.6 μm; non-contact parts can use 3.2 μm.
- Motion Type: High-speed rotating or reciprocating parts demand finer roughness to reduce friction, while static components can tolerate coarser grades.
- Working Environment: Corrosive or clean environments benefit from smoother finishes, while surfaces requiring coatings perform better with slightly rougher grades.
- Cost Considerations: Each improvement in grade can increase production costs by 30%–50%. Ask: Does the part truly need this level of smoothness? What functional benefit does a finer finish provide?
Advanced manufacturing emphasizes “fit-for-purpose precision”—selecting CNC surface roughness based on actual needs rather than pursuing the smoothest finish. For example, in post-additive manufacturing (3D printing) processing, different regions may require varying grades: mating surfaces need smoothness, while heat-dissipating surfaces can use a rougher finish to increase surface area.
Basics of Measurement and Specification
To clearly communicate requirements when ordering parts, 标注 the Ra value directly on the drawing (e.g., “CNC Surface Roughness: Ra 1.6”). Common tools for measuring include portable surface roughness testers, comparison specimens, and contour profilometers for high-precision applications.
Conclusion
The best CNC surface roughness is not the smoothest one—it’s the most suitable one. By aligning this parameter with the part’s function, motion, environment, and cost constraints, manufacturers can achieve optimal performance without unnecessary expenses. Mastering the art of selecting CNC surface roughness is key to smart, efficient manufacturing in today’s competitive landscape.
